Multi Art harte Beanspruchung 5 Ton Toe Hydraulic Lifting Jack
Produktdetails:
| Herkunftsort: | Zhejiang, China |
| Markenname: | YEEDA |
| Zertifizierung: | CE |
| Modellnummer: | YD21-007---YD21-010 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 20pcs |
|---|---|
| Verpackung Informationen: | Kartonieren Sie Kasten-oder Sperrholz-Kiste |
| Lieferzeit: | 45 Tage |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 1000pcs/month |
|
Detailinformationen |
|||
| Modell nein.: | YD21-007---YD21-010 | NAME: | Wirtschaftlicher Toe Jack |
|---|---|---|---|
| Farbe: | Normal in Rotem und in Blauem und kann besonders angefertigt werden | Oberflächenbehandlung: | Pulverbeschichtung |
| MOQ: | 20pcs | Lieferzeit: | 30 Tage nach empfangener Ablagerung |
| Gebrauch: | schwere Anlage oder Maschinerie des Aufzugs | Zertifizierung: | CE |
| ZAHLUNG: | 1) T/T, 30% Ablagerung, 70% gegen B-/Lkopie. 2)L/C am Anblick | ||
| Markieren: | Toe Hydraulic Lifting Jack,5 Ton Hydraulic Lifting Jack,Harte Beanspruchung 10 Ton Hydraulic Toe Jack |
||
Produkt-Beschreibung

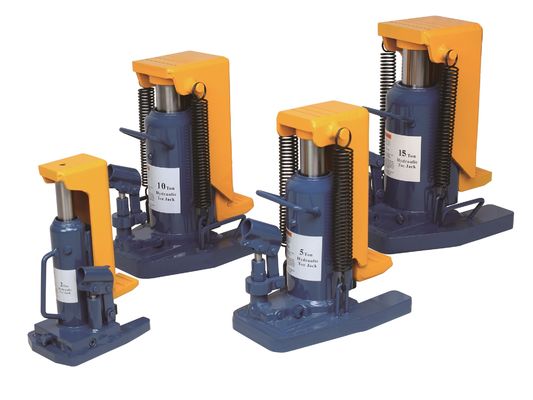

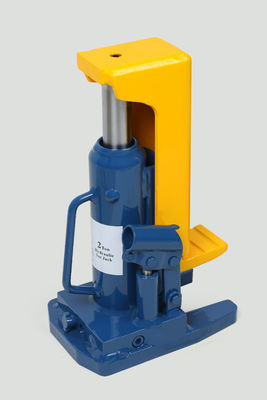

YD21-007/ Economic Toe Jack
Designed for lifting loads with very low minimum clearances (foot) or high clearances (head)
Ideal for house moving, machinery installation and application at shipyard, bridge building or plant construction sites
Great companion tool for machinery skates
Convenient swivel socket for easy operation in any direction on 5 and 10 ton models
Safety valve for overload protection
Features :
- spring assisted return and over-travel protection on 5, 10 ton or 15ton models
- Ram is made of heat treated special steel to resist rust and assure strength
- Electrically welded base and cylinders to assure strength
- Not affected by temperature extremes
- Pump handle included
- Complies with ANSI/ASME PALD 2009 standards
Technical Specification:
| Model No. | YD21-007 | YD21-008 | YD21-009 | YD21-010 | ||||||||||
| Toe Capacity | 4,400LB (2,000KGS) | 11,000LB (5,000KGS) | 22,000LB (10,000KGS) | 33,000LB (15,000KGS) | ||||||||||
| Head Capacity | 6,600LB (3,000KGS) | 13,200LB (6,000KGS) | 30,800LB (14,000KGS) | 44,000LB (20,000KGS) | ||||||||||
| Min./Max Toe Height | 0.7"(17mm) / 5.2"(132mm) | 1.06"(27mm) / 5.8"(147mm) | 1.22"(31mm) / 6.9"(176mm) | 1.22"(31mm) / 7.7"(196mm) | ||||||||||
| Min / Max Head Height | 9.2"(235mm)/13.8"(350mm | 11.5"(293mm)/16.25"(413mm) | 12.8"(327mm)/18.6"(472mm) | 13.58"(345mm)/20"(510mm) | ||||||||||
| Toe Size | 2"x2"(50x50mm) | 2.95"x2.2"(75x57mm) | 3.3"x2.36"(84x60mm) | 3.9"x2.75"(100x70mm) | ||||||||||
| Base Size | 7"x5"(178x125mm) | 10.6"x7.2"(270x183mm) | 11.3"x9.4"(287x240mm) | 11.8"x9.8"(300x250mm) | ||||||||||
| N.W./G.W. | 18.7/23lb(8.5/10.5kg) | 49.5/52.8lb(22.5/24kg) | 82.5/85.8lb(37.5/39kg) | 106.7/110lb(48.5/50kg) | ||||||||||
| Package Size | 9"x7"x9.8"(230x170x250mm) | 12.6"x9"x12.6"(320x230x320mm) | 13.4"x11.4"x14.2"(340x290x360mm) | 14.7"x11.8"x16"(374x300x405mm) |
